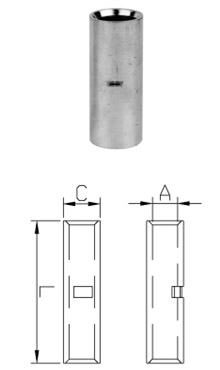

TBC中间套管
PART NO
2010-2012 |
ITEM NO |
DIMENSIONS |
| C |
A |
L |
| LY0017-3001 |
TBC1.5 |
3.7 |
1.8 |
16.0 |
| LY0017-3002 |
TBC2.5 |
3.9 |
2.3 |
20.0 |
| LY0017-3003 |
TBC4 |
4.7 |
3.0 |
20.0 |
| LY0017-3004 |
TBC6 |
5.9 |
4.0 |
20.0 |
| LY0017-3005 |
TBC10 |
6.6 |
4.5 |
23.0 |
| LY0017-3006 |
TBC16 |
7.5 |
5.5 |
30.0 |
| LY0017-3007 |
TBC25 |
9.1 |
6.7 |
35.0 |
| LY0017-3008 |
TBC35 |
11.0 |
8.6 |
40.0 |
| LY0017-3009 |
TBC50 |
12.4 |
9.5 |
40.0 |
| LY0017-3010 |
TBC70 |
15.0 |
12.0 |
45.0 |
| LY0017-3011 |
TBC95 |
17.0 |
13.4 |
45.0 |
| LY0017-3012 |
TBC120 |
19.0 |
15.0 |
50.0 |
| LY0017-3013 |
TBC150 |
21.2 |
16.5 |
55.0 |
| LY0017-3014 |
TBC185 |
23.0 |
19.0 |
60.0 |
| LY0017-3015 |
TBC240 |
26.5 |
21.0 |
60.0 |
| LY0017-3016 |
TBC300 |
30.0 |
24.5 |
70.0 |
| LY0017-3017 |
TBC400 |
35.0 |
27.0 |
80.0 |
|
